I'm editing wireframe icons and noticed that the color palette for wireframes contains each of the "damage zone" colors 2 or 3 times, just with different IDs:

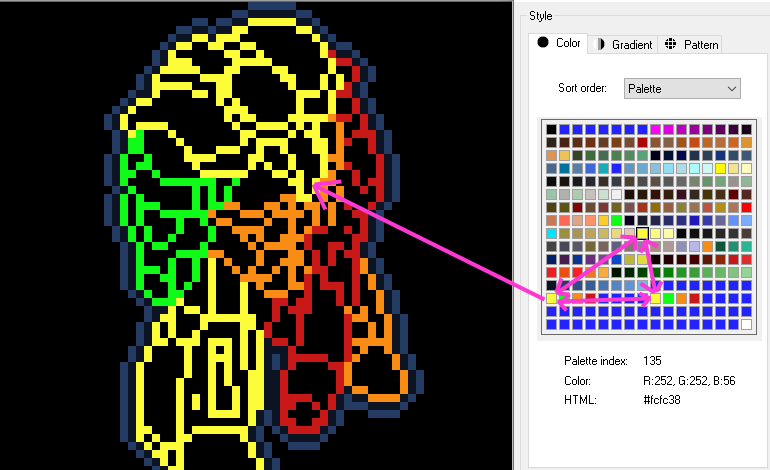

Only the version with the correct ID will be replaced when the unit is damaged. The version with the lowest ID will always stay the same, as shown here:

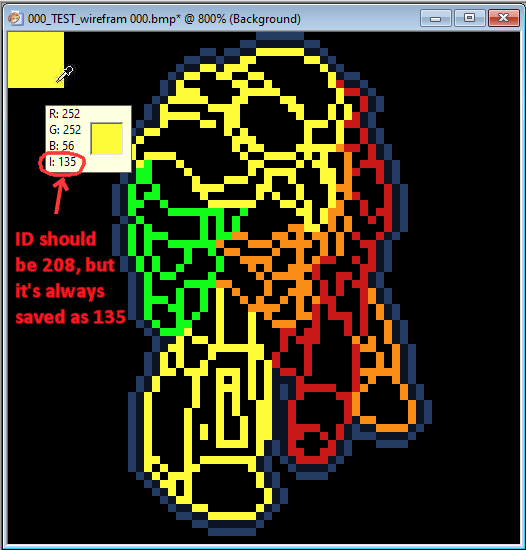

I use PSP9, and it always draws the colors with the wrong ID, even if I previously selected the version with the correct ID from the palette:

What paint programs do you guys use to make wireframes with working damage zones?




Oct 6 2020, 12:03 pm Voyager7456 Post #2

Responsible for my own happiness? I can't even be responsible for my own breakfast

The program you're using is probably fine, to solve the issue you can use a different palette that doesn't have multiple entries for those colors. I've attached the one that I use.

Attachments:
Icon-Wire.act
Hits: 2 Size: 0.75kb



all i am is a contrary canary
but i'm crazy for you
i watched you cradling a tissue box
sneezing and sniffling, you were still a fox


Modding Resources: The Necromodicon [WIP] | Mod Night
My Projects: SCFC | ARAI | Excision [WIP] | SCFC2 [BETA] | Robots vs. Humans | Leviathan Wakes [BETA]


Oct 7 2020, 7:50 am Netbek Post #3



good idea, it worked!
In my case, I used Notepad++ to edit the .psppalette Palette-Files that PSP9 gives me.
For future searchers who are complete beginners, I documented each step in a small image guide (also attached as .zip below). It shows how to make custom wireframe icons with working damage zones.
