Jul 28 2021, 2:07 pm Netbek Post #1

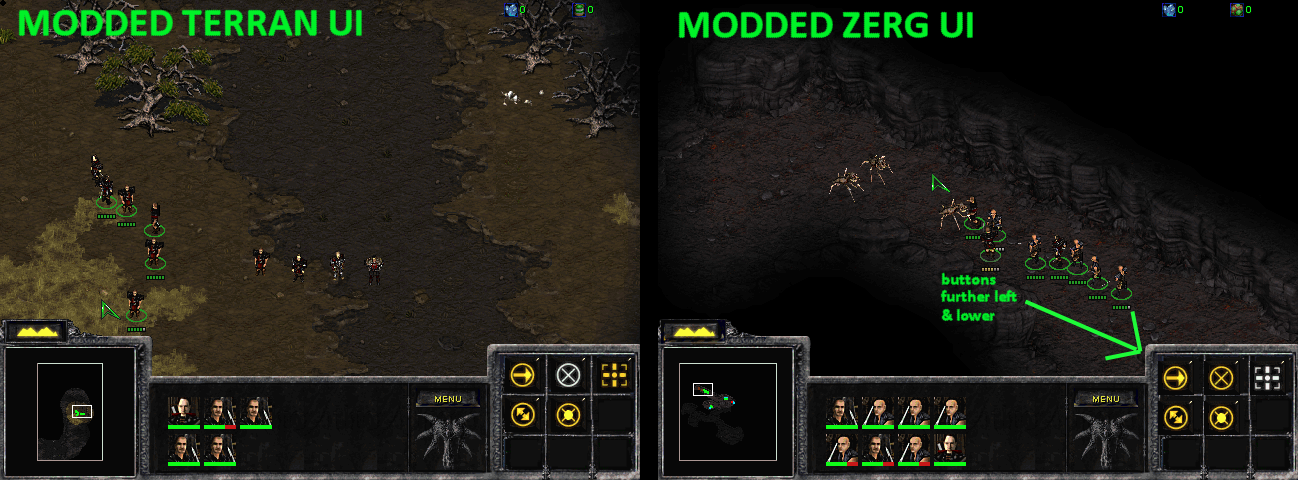

I noticed that the command buttons in the zerg UI have slightly different coordinates than in terran/protoss UI:

I want to normalize UI for all 3 factions. As such, I want the zerg buttons to have the same coordinates as terran ones.
IMAGE OF PROBLEM

SC1 PROJECT
WC3 PROJECT

Jul 30 2021, 2:59 pm

Voyager7456 Post #2

Responsible for my own happiness? I can't even be responsible for my own breakfast

The position of these buttons is controlled by .bin files - rez\statbtnp.bin, rez\statbtnt.bin and rez\statbtnz.bin in StarDat.mpq

You can edit these with a tool like PyBIN, but since you just want to make them all the same it'd probably be easiest to just copy the vanilla statbtnt.bin twice and rename it for the other races.

all i am is a contrary canary
but i'm crazy for you
i watched you cradling a tissue box
sneezing and sniffling, you were still a fox

Modding Resources: The Necromodicon [WIP] | Mod Night
My Projects: SCFC | ARAI | Excision [WIP] | SCFC2 [BETA] | Robots vs. Humans | Leviathan Wakes [BETA]

Jul 31 2021, 12:25 pm Netbek Post #3

Thank you, it has worked! Help added to credits (once again).

SC1 PROJECT
WC3 PROJECT

Jul 31 2021, 9:07 pm RdeRenato Post #4

I am Renato

ty x9999

just yesterday i needed this

:unsure:

i am RdeRenato, a veteran noob
